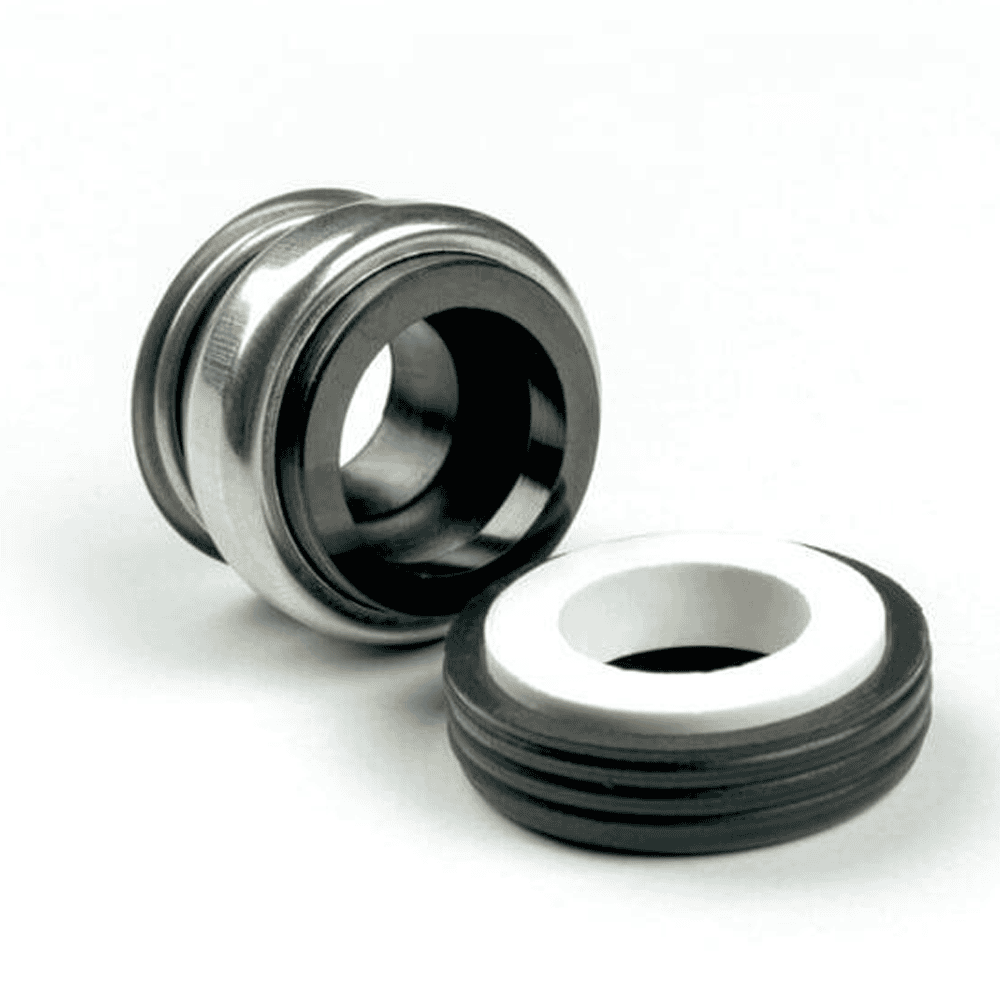

DRL Series
Features:
- Unitized - Ease of product line assembly
- Compact design occupies less space
- Cost effective
Application:
- Agricultural, commercial and residential water systems
Operation Limits:
- Pressure - Upto 4 bars; Size - 8mm to 32mm
F Series
Features:
- Modular Design - Ease of replacement
- Cost effective compared to RC series
- Single coil spring with elastomer bellows
Application:
- Household appliances and sump pumps
Operation Limits:
- Pressure - Upto 4 bars; Size - 12mm to 19mm
RC Series
Features:
- Modular Design - Ease of replacement
- Rigid and enhances service life
- Single coil spring with elastomer bellows
Application:
- Agriculture, commercial and residential water systems
Operation Limits:
- Pressure - Upto 6 bars; Size - 12mm to 32mm
RS-05 Series
Features:
- Modular Design - Ease of replacement
- Rigid and enhances service life
- Single coil spring with elastomer bellows
Application:
- Agriculture, commercial and residential water systems
Operation Limits:
- Pressure - Upto 6 bars; Size - 30mm & 35mm
OPS Series
Features:
- Automatic adjustment for abnormal shaft end play
- Economic replacement for applications due to wide service range
Application:
- Used in compressors, pressure boosters pumps, chillers, submersibles, waste water pumps
Operation Limits:
- Pressure - Upto 5 bars; Size - 14mm, 15mm, 16mm & 19mm
OPS-DHS Series
Features:
- Automatic adjustment for abnormal shaft end play
- Economic replacement for applications due to wide service range
- Double Side Carbon and Ceramic
Application:
- Sewage Pumps, compressors, pressure boosters pumps, chillers, submersibles, waste water pumps
- Industrial, commercial and residential water systems
Operation Limits:
- Pressure - Upto 5 bars; Size - 14mm, 15mm, 16mm & 19mm
SD Series
Features:
- Automatic adjustment for abnormal shaft end play
- Economic replacement for applications due to wide service range
- Double side available in this model
Application:
- Used in compressors, high pressure boosters, coffee/tea estates, submersibles, waste water & sewage pumps
Operation Limits:
- Pressure - Upto 6 bars; Size - 16mm, 19mm, 25mm & 1inch
RS-04 Series
Features:
- Compact design with interlocking drive sleeve design
- Unique bellow design to withstand initial torque without slippage
Operation Limits:
- Pressure - Upto 3 bars; Size - 1/2" inch
RS-03 Series
Features:
- Closed type, compact but used in rugged application
- Can withstand high torque
Application:
- Used in sea water pumping, construction sites
Operation Limits:
- Pressure - Upto 6 bars; Size - 50mm
